Specifications
Technology Features
- WXGA,IPS Color LCD Touch Screen
- Shows 16,777,216 colors
- Measures 10.1" diagonally
- Displays Clock and Date
- Mpeg-4 movie/video play function
- Video display size 6.2" diagonally
- Exclusive 1GB Memory Storage for video
- NeedleCam™ Digital Camera for embroidery and sewing positioning with faster scanning, 3X higher resolution
- Precise Touch Positioning™ using NeedleCam
- IQ Designer with paper holding frame for image scanning
- LCD screen size can be enlarged to 1280 x 800 pixels
- Will automatically create an embroidery pattern from a JPEG image
- Drawing area is 3-3/4" x 5-11/16" (96mm x 145mm)
- 90 Preloaded open, closed and region shapes
- Able to select different line colors and fill colors
- 6 Different stitch patterns: running, bean, satin and no outline
- 13 Different fill patterns: regular fill, no fill, Stipple inside or around a shape and 10 decorative pattern fills
- Duplicate, paste and edit preloaded shapes
- Adjust line, fill and stippling width, length and density properties
- Undersewing options
- Outline stamp shape creation for Trapunto techniques
- 2 scanning modes
- Fine- For illustrations
- Standard - For line drawings
- Guide Beam and Needle Beam for precision alignment of stitches
- Class 1 Laser Product (IEC60825-1:2007)
- Sensor Pen allows you to set preferences
- Set a guideline for sewing
- Select the needle position location
- Select custom zigzag widths
- Choose an ending point on the fabric for stitches to stop sewing
- See the needle position location for embroidery
- Select precise placement for embroidery designs

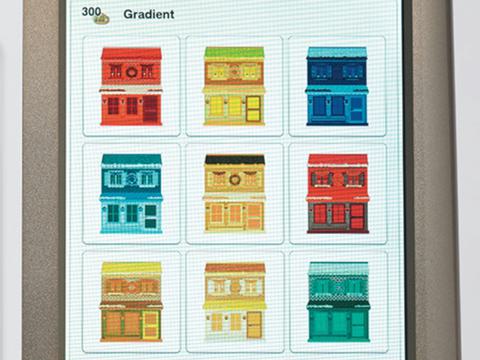

- Color Visualizer with pinnable color selections
- Enhanced Stadium Lighting for 50% brighter true color LED lighting on the needle and work area with 5 settings
- 3 USB drives
- 2 (Type A) USB 2.0 drives to connect a mouse Flash drives, Hub and CD-ROM drives
- 1 (Type B) USB direct connect to a PC
- Precise tracking system on embroidery carriage
- LED spool stand lighting
- External speaker jack and adjustable volume settings
- NeverMiss™ Automatic Advanced Threading System
- Digital Dual-Feed System ensures utmost fabric control when feeding layers or difficult fabric types
- Digital Dual-Feed couching sole for decorative stitching and reverse bobbinwork
- Advanced Pivoting Feature and Automatic Fabric Sensor System
- Automatic sensors
- Thread tension control makes tension adjustments for accurate stitches
- Upper and lower thread sensors on/off
- Upper and lower thread sensors to alert when threads run out
- On-screen hoop sensor to recommend size of hoop
- Embroidery and sewing speed up to 1,050 spm
- Resume mode
- Programmable shutoff capabilites
- Eco power mode
Convenient Sewing Features
- Larger sewing bed and workspace with 11.25" to the right of the needle
- Convenient one-touch buttons for
- Start/Stop
- Reverse sewing
- Reinforcement key
- Needle up/down
- Thread cutter
- Automatic presser foot lift
- Automatic needle threading
- Sewing speed control
- Quick-Set, Top-Loading bobbin with sensor
- Quick-Set Independent bobbin winding system with variable speed
- Ergonomic 3-position, adjustable knee lift with extra high presser foot lift
- 10mm Automatic and 13mm Manual
- Programmable 3-step needle up/down
- Automatic thread cutter (with on/off capability)
- Needle plate with scale in inches and centimeters
- Multi-Function Foot Control
- Free arm
- Two accessory storage compartments
Advanced Sewing Features
- 770 Built-in stitches including
- 149 Utility including 15 one-step buttonhole styles and 1 four-step custom buttonhole
- 442 Decorative
- 79 Decorative satin
- 20 Satin
- 17 Cross
- 63 Combinable Utility stitches
- 5 Built-in alphabets
- 30 Quilting stitches offer 57 needle position options
- Stitch length 0.0mm - 5.0mm
- Basting stitch length of up to 30mm
- Maximum Utility stitch width 7mm
- Utility stitch editing capabilities
- 5 Memory settings for each Utility stitch
- Decorative stitch editing capabilities
- Edit and combine Character Decorative stitches
- Character/Decorative stitch memory equaling 1MB
- Satin stitch elongation
- Edge sewing capabilities using NeedleCam Digital Camera
- Sew Utility and Decorative stitches while embroidery arm is attached
- Automatic drop feed on screen
- Mirror-image
- Lock key for Utility and Decorative stitches
- Reinforcement priority settings
- Lateral and diagonal feeding
- Variable needle positions
- Fully automatic built-in darning
- Twin needle settings
Embroidery Capabilities
- 661 Embroidery designs built-in including:
- 336 Baby Lock exclusives
- 37 Nancy Zieman designs
- 15 Buttonhole embroidery designs in 3 sizes (45 total)
- 15 Buttonhole embroidery frame designs
- 160 Large decorative stitch designs
- 14 Sophisticated bobbin work embroidery designs
- 140 Frame combinations
- 28 Font styles including:
- Extra-large striped alphabet and characters (100 total)
- Extra-large block alphabet and characters (100 total)
- Exclusive script alphabet and characters (70 total)
- Large floral block alphabet (64 total)
- Large vine alphabet (30 total)
- Greek alphabet (24 total)
- Embroiders up to 9.5" x 14" (240mm x 360mm) embroidery field
- Memory capacity approximately 9MB
- Reads embroidery designs with a stitch capacity of up to 700,000 stitches per design
- WXGA, IPS Color LCD Touch Screen shows
- Design placement using drag/drop and slide/ scroll capabilities
- Enhanced Realistic Preview
- Design previews can be enlarged 200%
- Needle positioning grid selections
- Needle position image can be enlarged 200%
- Estimated embroidery time display and stitch count
- Needle advancement (1, 10, 100, or 1000 stitch increments)
- Measurements displayed in inches or metrics
- Color separation
- Thread color indicator
- On-screen hoop size indicator including 9.5" x 9.5" hoop
- Low bobbin thread indicator
- 300 color names
- Screen saver customization
- Thumbnail images viewed at 150% the normal size
- Embroidery speed up to 1,050 spm
- 9-Point trial check points
- Starting point key for instant alignment of characters or patterns
- Alternate bobbin case for pre-wound bobbins
Embroidery Editing Capabilities
- Combine embroidery designs on screen
- Character/text array function
- Character spacing
- 0.1°, 1°, 10°, and 90° pattern rotation
- Enhanced design enlargement (up to 200%) and reduction (down to 60%) capabilities
- Design duplication
- Automatic appliquê
- Automatic basting
- Mirror imaging
- Change color selections within designs
- Color sorting on border designs
- Monochrome option for embroidery designs
- Programmable custom thread color selection
Warranty
- 25 years limited
- 10 years parts
- 5 years computer circuit
- 5 years electrical
- 1 year labor
