Specifications
Semi-Industrial Features
- 6 Needles - 1 position for each needle
- Maximum embroidery speed: 1,000 stitches per minute
- High Speed Acceleration

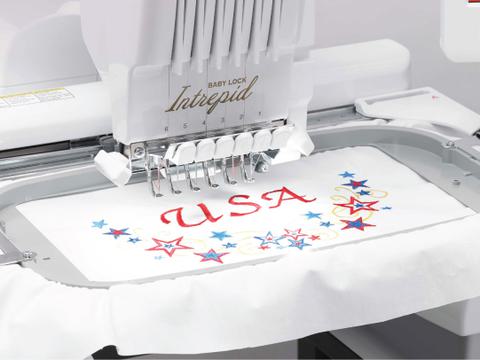

- Embroiders up to 7-7/8" x 11-3/4" (200mm x 300mm) embroidery eld
-
Stitch reading capacity:
- 500,000 Stitches per design,
- 500 Color changes, or
- 100 Combined designs
Convenience Features
- Increased CPU processing speed (3x faster than BMP8)
- Built-in memory (10MB)
- Bobbin system: front loading, vertical rotary hook
- Uses pre-wound bobbins (Class "L")
- Push button, automatic needle threader
- 2 LED lights to illuminate work area
- Upper thread breakage sensors
- Manual tension control
- Automatic thread trimmer (upper and lower)
- Start/stop button with lock feature
- Onscreen speed control while stitching
- Change screen and thumbnail background color
- Built-in holder with stylus
- Change embroidery position using speed keys
- Needle bar/frame move key extends the hoop for easy access
- Enhanced appliqué display functions
Customizing Features
- 86 Embroidery designs built in
- 60 Exclusive designs
- 37 Fonts including:
- Baby Lock exclusive script
- 2 large oral alphabets
- Renaissance alphabet
- Vintage alphabet
- Line alphabet
- Applique letters
- Greek letters
- Applique Greek letters
- Block alphabet
- Large striped alphabet
- 3 monogram designs with font frames
- 140 frame combinations
- Combine embroidery designs on screen
- Character/text array function
- Character spacing
- Multi-line text
- Character insert and group edit capabilities
- Pattern rotation (0.1°, 1°, 10°, and 90°)
- Design size change (60% reduction and 200% enlargement) on most designs
- Deselect Region – Preset and skip unwanted regions for time savings
- Needle forward and reverse position placement (1, 10, 100 or 1,000 stitch increments)
- Intuitive forward and reverse placement by touchable progress bar and direct number input
- Easy-to-use switch spool key to rotate color spools on screen
- Design duplication (up to 20 times in both directions)
- Enhanced design grouping /ungrouping allows designs or letters to move as a group
- Color Visualizer with pin-able color selections and color grouping
- Automatic appliqué stitching
- Automatic basting
- Mirror imaging
- Increase design thumbnail from 100% to 150% for easy viewing
- Change color selections within designs
- Continuous border capabilities and color sorting on border designs
- Monochrome option for embroidery designs
- Short stitch delete
- Editing patterns as a group
- Embroider repeated patterns without color sorting
- Instant needle edge placement (9 starting and 9 ending positions)
- Thread color display in 6 options
- Custom color displays in 3 options: Original Palette, Custom Palette 1, Custom Palette 2
- Hoop sensor advises hoop size for design chosen
- On-screen count and running time system
Technology Features

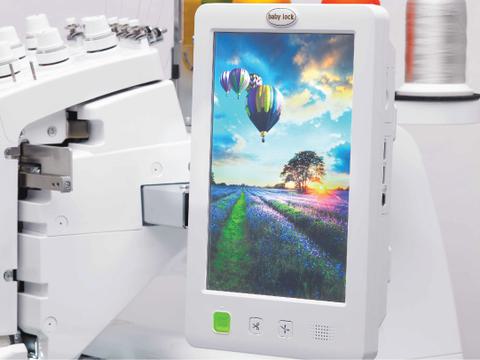

- TruViewTM IPS LCD Color Touchscreen
- Shows 16,771,216 colors
- Measures 10.1" diagonally
- Adjustable screen brightness

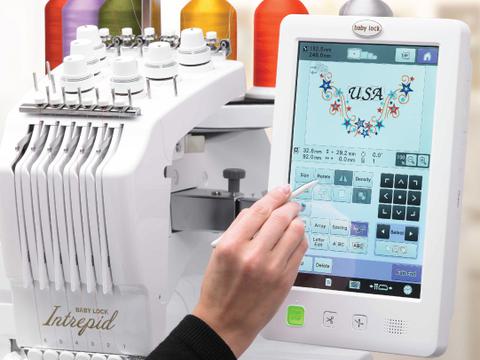

- TruViewTM IPS Touch Screen Shows:
- Design placement using drag and drop capabilities
- Estimated embroidery time display and stitch count
- Needle advancement (1, 10, 100, or 1000 stitch increments)
- Measurements displayed in inches or millimeters o Color separation
- Thread color indicator
- Onscreen hoop size indicator
- 300 Color names
- Screen saver customization
- Customizable mouse pointer
- Needle Beam for precise alignment
Software/Connectivity
- Optional External USB 1GB Flash Drive compatible up to 32GB
- 3 USB drives; 2 (Type A) drives, version 2.0 connects with ash drives and CDROM drives and version 2.0 connects with mouse, hub, and oppy drives, and 1 (Type B) USB direct connects to a PC
- 1 SD card connection capability (SD and SDHC)
- Reads multiple formats (PES, PEC, DST, PHC)
- Upgradable through USB connection only
-
Linking capabilities connect up to 4 machines using
Palette 9 software through a powered hub
- Compatible machines include BMP9 with upgrade, BND9-2, BND9, BNT10, BNT10L and BMV10
Support Features
- Built-in operation guide with 17 videos
- Built-in help messages
- Auto save feature - automatically saves last design when power is turned off or a power failure occurs
- Eco and Sleep power-saving modes
- Shipping weight (111 lbs. or 50.4 kg.)
- Machine weight (84 lbs. or 38 kg.)
Warranty
- 25-year product casting
- 5-year circuit boards
- 5-year electrical
- 2-year parts
- 1-year labor
