Specifications
Technology Features
- USB direct connect (Type A)

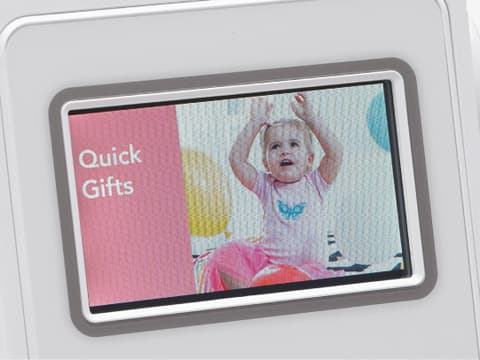

- Color LCD Touch Screen (3.2" x 1.8")
- Advanced needle threader
- Automatic thread cutter
- Quick-Set, top loading bobbin
- Quick-Set bobbin winder
- Upper & lower thread sensors to alert when threads are broken
- LED light illuminates sewing surface
Convenient Sewing Features
- Convenient One-Touch Buttons for
- Start/stop
- Reverse sewing
- Needle up/down
- Thread cutter
- Sewing speed control
- Programmable needle up/down
- Needle plate with scale in inches and centimeters
- Electronic foot control with separate power cord
- Free arm with drop feed lever
- Accessory storage compartment
- Lightweight and compact size for easy travel
- Weighs 15.5 lbs in sewing mode
- Weighs 18.45 lbs with the embroidery unit attached
Advanced Sewing Features
- 191 Built-in stitches including:
- 72 Utility (with 10 styles of one-step buttonholes)
- 41 Decorative
- 17 Satin
- 11 Cross
- 10 Decorative Satin
- 40 Combinable Utility Decorative Stitches
- 4 Alphabet Styles
- Stitch length 0.0mm - 5.0mm on sewing stitches
- Maximum Utility stitch width: 7mm
- Utility stitch editing capabilities
- Store personal stitch settings for each Utility stitch on machine
- Variable needle positions
- Twin needle settings key
Embroidery Capabilities
- Built-in embroidery design library
- 95 Embroidery designs
- 140 Frame Patterns
- 11 Font styles; 10 Font styles in upper and lower case and 1 Uppercase oral alphabet
- Embroiders up to 4" x 4" (100mm x 100mm) embroidery eld
- Reads embroidery designs with a stitch capacity of up to 50,000 stitches per design
- Up to 12 Memory Pockets for embroidery, equaling 512KB
- Enlargement (up to 20%)
- Reduction (up to 10%)
- Mirror imaging
- 1°, 10°, and 90° pattern rotation
- Embroidery speed up to 400 spm (stitches per minute)
- Adjustable stitch density on built-in fonts
- Editing capability for combining designs
-
LCD Touchscreen shows:
- Estimated embroidery time display
- Needle advancement (by color or stitch increment)
- Measurements displayed in inches or millimeters (mm)
- Thread color indicator
- On-screen hoop size indicator
- Trial function
Warranty
- 25 years limited
- 10 years parts
- 5 years computer circuit
- 5 years electrical
- 1 year labor
