Specifications
Not compatible with Smarter by Pfaff 260c, 160s, 140s

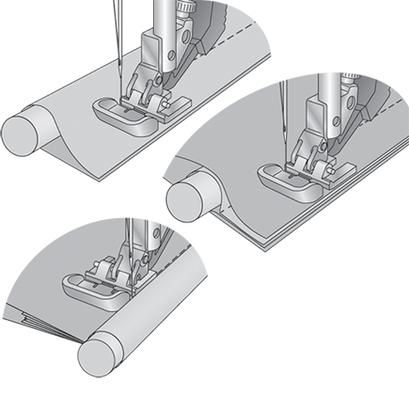

To make piping from your fabric:
- Snap on the Grand Piping Foot to the right side of the needle.
- Engage the IDT™ system.
- Cut fabric strips on the bias or crosswise grain, wide enough to cover the cording plus seam allowances.
- Lay the cording on the wrong side of the fabric strip and wrap the fabric over the cord.
- Place the fabric and cord under the Grand Piping Foot with the cord to the left of the foot.
- Select a straight stitch, 2.5 mm stitch length. Move the needle position to the left. Sew.
- Use your new piping in projects following the steps above.
TIP: When you sew this piping into a project, adjust the needle position so it stitches one setting closer to the cord, to hide the first stitching.
To stitch piping into a seam:
- Snap on the Grand Piping Foot to the right side of the needle.
- Engage the IDT™ system.
- Select a straight stitch, length 2.5.
- Place the piping on the right side of fabric, matching raw edges. Position under the foot with the piping to the left of the foot.
- Add a second piece of fabric on top so right sides are together and piping sandwiched between the layers.
- Position under the Grand Piping Foot with the piping to the left of the foot.
- Sew.
Tip: Clip the seam allowance around curves and at corners to reduce bulk and allow the seams to lay fl at.
Topstitching:
- Snap the Grand Piping Foot to the left side of the needle.
- Engage the IDT™ system.
- Open the seam and fold so the piping is along the fabric edge. Press.
- Sew a row of topstitching to the left of the seam line.
