Pfaff Invisible Zipper Foot

By Pfaff

SKU#: 820474096

This product is not available for purchase online. Please Contact Us for pricing & purchase options.

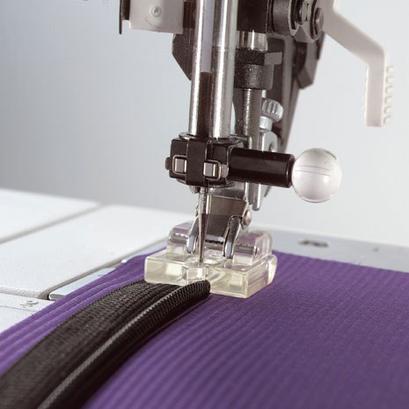

Invisible zippers are the least noticeable of all zippers. As the name implies, the zipper is hidden in a seam, becoming virtually invisible. This makes it a popular choice for elegant clothing sewn with expensive materials, like evening wear. But it‘s equally appropriate for skirts, blouses, and other everyday clothing items. Invisible zippers (also called concealed zippers) are easily sewn with the PFAFF® Invisible Zipper Foot!

Trade-Ins Welcome!

Call (971) 803-7665 or email us for a trade-in estimate.

Pre-Owned Machines Available!

Click Here to view our current selection!

How to use:

  1. Use the marking pen to mark the length of the zipper on the right side of the fabric, on both sides of the opening. The zipper should be at least 2 cm to 3 cm (3/4 to 1 1/4 inch) longer than the opening.
  2. Attach the special Invisible Zipper Foot and select a straight stitch, center needle position and stitch length to 2.5 to 3.0 mm.
  3. Open the zipper and flatten the coil slightly with your thumb, so that the seam line between the tape and the coil becomes visible. Never iron the zipper.

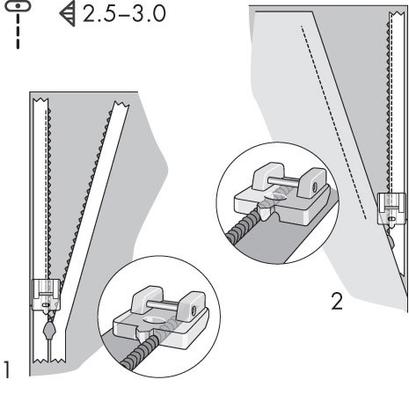

  4. Place the right half of the zipper onto the right side of the opening, with right sides of the zipper and fabric together. The coil should lie directly on the seam line, starting about 1.5 to 2 cm (5/8 to 3/4 inch) below the upper edge of the fabric. Pin in place, if desired. Make sure that the bottom end of the zipper extends 2 cm to 3 cm (3/4 to 1 1/4 inch) beyond the bottom end of the opening. (ill. A)
  5. Carefully press the teeth slightly to the right and lower the zipper foot, so that thecoil lies in the groove to the right of the needle.
  6. Starting at the top, sew the zipper in place, stopping at the previously marked end of theopening. Tie-off the end of the seam. Close the zipper. (ill. B,C)
  7. Place the second zipper tape on the left side of the opening, on the right side of the fabric.Make sure that both coils are level.
  8. Pin the zipper in place. Open the zipper.
  9. Carefully press the teeth slightly to the left and lower the Zipper Foot, so that the coil lies in the groove to the left of the needle.
  10. Starting at the top, sew the zipper in place, stopping at the previously marked end of theopening. Tie-off the end of the seam. Close the zipper.
  11. Finally, sew the seam below the zipper, starting at the bottom and working up. Attach the standard Zipper Foot so that the presser foot clamp and the foot are to the right of center.Move the needle to the right. (ill. D)
  12. Pull the loose bottom end of the zipper toward the seam allowances and stitch as close as possible up to the last stitches of the zipper seams.
  13. Press the seam open.

TIP: If the zipper is too long, sew over the end of the coil with a straight stitch or a closely spaced zigzag stitch, approx. 2 cm (3/4 inch) below the bottom end of the opening. Cut off the excess zipper and finish the raw edge with a small piece of fabric.

Specifications

How to use:

  1. Use the marking pen to mark the length of the zipper on the right side of the fabric, on both sides of the opening. The zipper should be at least 2 cm to 3 cm (3/4 to 1 1/4 inch) longer than the opening.
  2. Attach the special Invisible Zipper Foot and select a straight stitch, center needle position and stitch length to 2.5 to 3.0 mm.
  3. Open the zipper and flatten the coil slightly with your thumb, so that the seam line between the tape and the coil becomes visible. Never iron the zipper.
  4. Place the right half of the zipper onto the right side of the opening, with right sides of the zipper and fabric together. The coil should lie directly on the seam line, starting about 1.5 to 2 cm (5/8 to 3/4 inch) below the upper edge of the fabric. Pin in place, if desired. Make sure that the bottom end of the zipper extends 2 cm to 3 cm (3/4 to 1 1/4 inch) beyond the bottom end of the opening. (ill. A)
  5. Carefully press the teeth slightly to the right and lower the zipper foot, so that thecoil lies in the groove to the right of the needle.
  6. Starting at the top, sew the zipper in place, stopping at the previously marked end of theopening. Tie-off the end of the seam. Close the zipper. (ill. B,C)
  7. Place the second zipper tape on the left side of the opening, on the right side of the fabric.Make sure that both coils are level.
  8. Pin the zipper in place. Open the zipper.
  9. Carefully press the teeth slightly to the left and lower the Zipper Foot, so that the coil lies in the groove to the left of the needle.
  10. Starting at the top, sew the zipper in place, stopping at the previously marked end of theopening. Tie-off the end of the seam. Close the zipper.
  11. Finally, sew the seam below the zipper, starting at the bottom and working up. Attach the standard Zipper Foot so that the presser foot clamp and the foot are to the right of center.Move the needle to the right. (ill. D)
  12. Pull the loose bottom end of the zipper toward the seam allowances and stitch as close as possible up to the last stitches of the zipper seams.
  13. Press the seam open.

TIP: If the zipper is too long, sew over the end of the coil with a straight stitch or a closely spaced zigzag stitch, approx. 2 cm (3/4 inch) below the bottom end of the opening. Cut off the excess zipper and finish the raw edge with a small piece of fabric.
